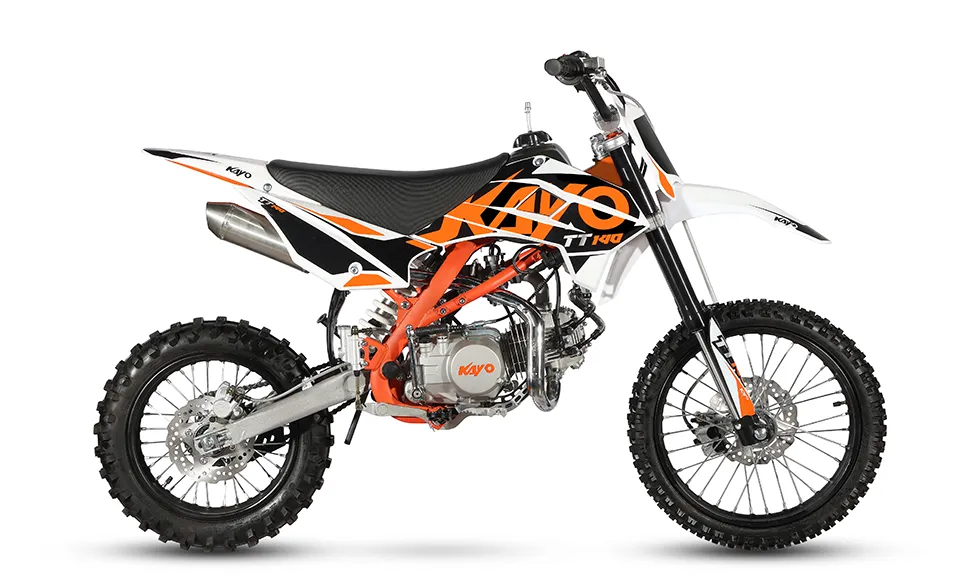

KAYO TT140

Features:

Power

Rev that Engine

Push what you can do with an Oil-Cooled Engine. The TT140 can ride faster and longer in any environment.

Ride with full velocity control with the Manual Four Speed Transmission.

Design

Nimble Size

Built with the same frame as TT125 and TT160, this durable engine and manual clutch pushes the limits for an exhilarating experience. We recommend this pit bike for riders with some experience.

Ride forward and sit comfortably in the TT140's racing style, ergonomic seat made for your long days off-road.

Performance

Precise Control

Land hard and stop sharp with an inverted front fork and Calibrated Hydraulic Braking System.

Be ready to glide over any terrain with the TT140's sturdy off-road ready suspension.

• Power
• Engine 4-Stroke, SOHC, Air Cooled
• Displacement 140.0 cc
• Bore x Stroke 56.0 x 57.0 mm
• Compression Ratio9.8:1
• Fuel System Carburetor
• Maximum Power8.2 kw @ 8000 rpm
• Maximum Torque10.2 N⋅ m @ 7500 rpm
• Ignition CDI
• Starting Method Kick Start
• Transmission Manual Four Speed with N-1-2-3-4
• Final DriveChain
• Performance
• Front Suspension 735 mm Non-Adjustable
• Rear Suspension 360 mm Non-Adjustable
• Tires F/17" R/14"
• Front Brakes Hydraulic Brake
• Rear Brakes Hydraulic Brake
• Dimensions
• Length x Width x Height 1780 x 750 x 1120 mm
• Seat Height 855 mm
• Ground Clearance 290 mm
• Wheelbase 1220 mm
• Dry Weight 73.0 kg
• Fuel Capacity 5.5 L
