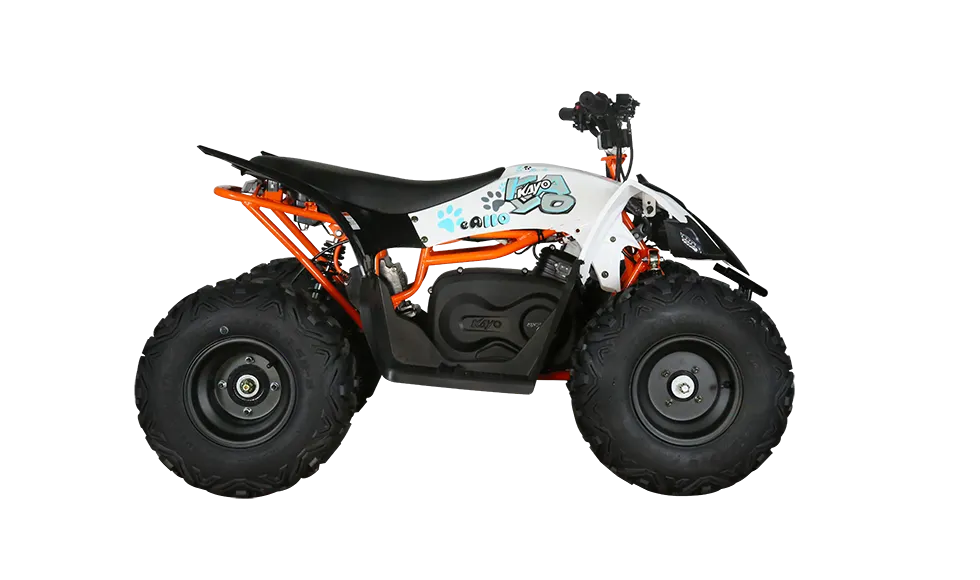

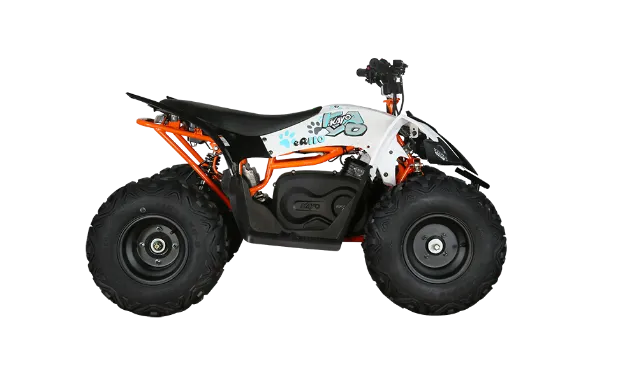

eA110

Power

Not Your Average Electric ATV

Confident kids can ride up to 43km/h with its efficient Brushless DC Motor in a rugged lightweight steel frame built for off-roading.

Experience a thrilling ride with a fully Automatic Transmission and an easy handlebar Speed Settings switch with Low, Medium, High, and reverse.

Performance

Compromise Nothing

The dual A-arm front suspension help riders perform at their best.

Along with front and rear hydraulic disc brakes and off-road tires with 8" rims, get ready to handle some real off-road challenges.

Safety

Dynamic Speed Control

Parents, choose the best time to unlock the High-speed setting with a keyed limiter underneath the seat. Get the most possible out of an electric ATV with the eA110.

Specifications:

• Power
• MotorBrushless DC Motor
• BatteryLead Acid 48V 20Ah
• Cooling System Air Cooled
• Speeds 2 Speeds:
  Low 8 km/h  Medium 24 km/h  High 43 km/h
• Rated Power 1000 w
• Maximum Power 2100 w
• Maximum Torque 24.0 N⋅ m
• Estimated Range 90 Minutes
• Estimated Charging Time 8 Hours
• Performance
• Front Suspension 265 mm
• Rear Suspension 265 mm
• TiresF/8" R/8"
• Front BrakesHydraulic Disc Brake
• Rear BrakesHydraulic Disc Brake
• Dimensions
• Length x Width x Height 1430 x 860 x 890 mm
• Seat Height 665 mm
• Ground Clearance 200 mm
• Wheelbase 910 mm
• Dry Weight 115.0 kg
