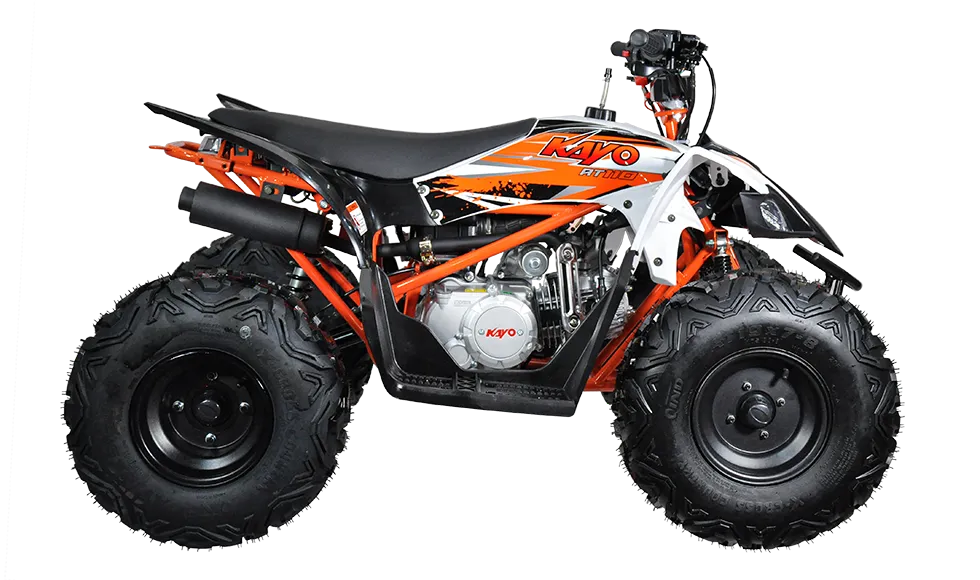

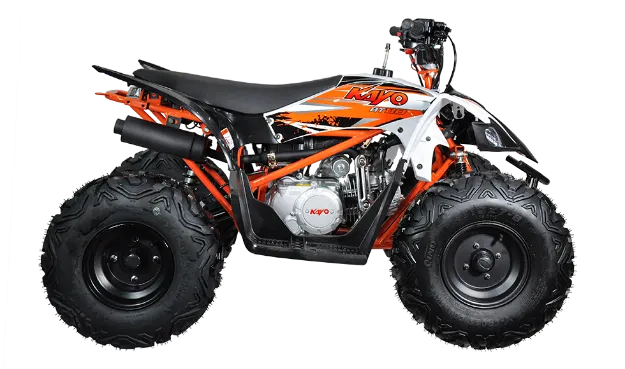

AT110

Power

Big Kid, Better Fit

The reliable 4-Stroke Engine, Fully Automatic Transmission with reverse, and taller seat check all the boxes.

Off-Road Ability

Discover Something New

Take longer journeys with the larger 4.0L fuel tank and durable off-road-ready tires that keep up with the big four-wheelers.

Safety

Light the Way

Safety comes first with the AT110 standard Rider safety-rope and Parental Kill Switch Remote that both shut down the engine immediately if engaged.

Rule the elements with the precise control of Hydraulic Disc Brakes and bright LED headlights that ensure optimal performance.

Specifications:

•  Power
• Engine4-Stroke, SOHC, Air Cooled
• Displacement107.0 cc
• Bore x Stroke52.4 x 49.5 mm
• Compression Ratio9.0:1
• Fuel SystemCarburetor
• Maximum Power5.1 kw @ 8000 rpm
• Maximum Torque7.2 N⋅ m @ 5000 rpm
• IgnitionCDI
• Starting Method Electric
• TransmissionAutomatic with R-N-F
• Final Drive2WD, Chain
• Performance
• Front Suspension265 mm Non-Adjustable
• Rear Suspension265 mm Adjustable
• TiresF/8" R/8"
• Front BrakesHydraulic Disc Brake
• Rear BrakesHydraulic Disc Brake
• Dimensions
• Length x Width x Height1360 x 840 x 880 mm
• Seat Height660 mm
• Ground Clearance110 mm
• Wheelbase920 mm
• Dry Weight103.0 kg
• Fuel Capacity4.0 L
